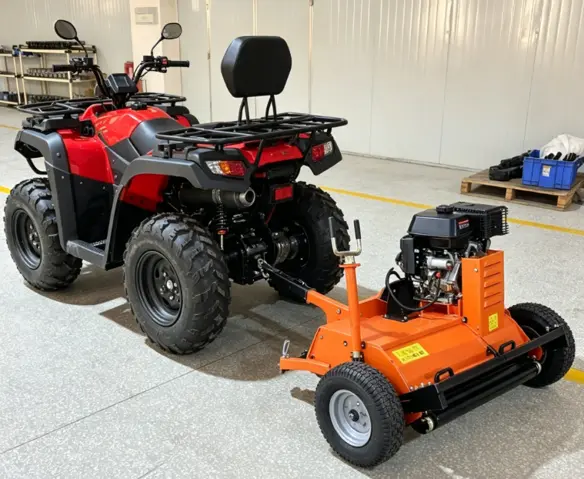

pull behind flail mower for atv

● Pull behind atv flail mower Cutting Advantages

Articulated flail hammer blades – distinct from rotary tiller blades or straight-blade mowers – are specifically designed for clearing heavy weeds, brush, and returning shredded material to the field. They are ideal for wild wasteland, sloping terrain, orchards, and roadside weed control.
Excellent shredding performance for direct field return, not just simple cutting
The articulated flail blades strike at high speed, repeatedly smashing and pulverizing weeds, reeds, and thin brush into fine, uniform clippings that remain on the soil surface to decompose naturally. There is no need for collection or removal. Tall grass does not collapse and lie flat on the ground, which would otherwise block sunlight.
High fault tolerance; impact-resistant against rocks and tree roots
The flail blades are mounted on a floating articulated hinge. When they hit rocks, tree roots, or stumps, they automatically swing back and deflect, avoiding damage. Unlike rigid straight blades that are prone to chipping or bending, this design ensures low failure rates in rough, rocky terrain – making it especially suitable for South American wasteland and mountainous areas with scattered stones.
Capable of handling coarse weeds and small brushc
It can cut thick-stemmed weeds, thorns, and small brush up to 1–3 cm in diameter. Ordinary rotary mowers can only handle soft grass and are prone to jamming or stalling when encountering brush. This flail mower excels in clearing overgrown brush during land reclamation.
Adjustable cutting height for a wide range of applications Cutting height is adjusted via the ground wheels. You can cut close to the ground for low grass, or raise the height to avoid tree roots and surface vegetation in orchards. It does not excessively scour or damage the topsoil, protecting the ground surface.
Cutting quality unaffected by travel speed
The cutting power is independent of the ATV's travel motion, so the rotor speed remains constant. The ATV operator can adjust forward speed according to grass density – faster for light grass without leaving uncut tall stalks, slower for dense brush – while the shredding results remain consistently stable.
Excellent ground-following on slopes and uneven terrain
The tow-behind floating ground wheels follow the contours of the terrain. On potholed or sloping ground, the cutter deck floats adaptively, preventing uneven cutting heights or missed patches. This ensures high cutting consistency when working on slopes.
Anti-wrapping and clog resistant
The high-speed rotating flail blades strike and shred, making it difficult for long grass or vines to wrap around the rotor. Even in thick, heavy growth, continuous feeding is smooth – much less prone to clogging and wrapping compared to disc mowers.
Neat and tidy ground after operation
The pulverized clippings are evenly spread across the ground, with no long grass piles left behind. This reduces the chance of regrowth from remaining stems and lowers the frequency of follow‑up mowing.

● Unique power advantages of the independently powered atv towable flail mower

This model is powered by its own independent engine, with the ATV serving only for towing and transport – it does not provide cutting power.
Independent power – does not consume ATV power
Cutting is driven by the mower's own gasoline engine; the ATV only handles the towing task. During uphill climbs or when working in thick weeds, the ATV's engine power is not drawn upon, so there is no risk of the ATV being bogged down or losing climbing ability due to the cutting load. Even ordinary small-to-medium horsepower ATVs can be used with this mower.
High torque, heavy‑duty operation without stalling
Each unit is equipped with a 13.5–24 HP four‑stroke engine, delivering high torque at low RPM. When dealing with tall grass, reeds, small brush, and dense thickets, the rotor speed drops very little, making it resistant to clogging or stalling. Thick‑stemmed vegetation can be shredded directly into the field, not merely cut off at the stalk.
Low power transmission loss
The belt + heavy‑duty clutch drive train delivers power directly to the flail rotor – no drive shaft or PTO take‑off is required. Power loss is minimal, start‑up response is quick, and load recovery is rapid. After impacts from rocks or branches, the rotor speed rebounds quickly, maintaining continuous shredding capability.
Cutting and travel fully decoupled – suitable for complex terrain
The ATV's travel speed can be freely controlled, while the mower's rotor speed remains independently constant. Whether going downhill, over rough ground, on sandy terrain, or on slopes – regardless of whether the ATV moves fast or slow – the flails always maintain their rated speed, ensuring consistent shredding quality. The cut is not compromised even when the vehicle speeds up.
Flexible power options and expandability
The same frame can be fitted with engines of different horsepower ratings. Even wide‑cut models can be adequately powered without being limited by the ATV's horsepower. Working widths of 120–150 cm are achievable, significantly improving efficiency when clearing large areas of wasteland.
Overload protection to safeguard power components
The clutch slips to absorb impact shocks, and the flails are articulated with floating mounts. When hitting hard objects, the clutch relieves the load, preventing engine strain or crankshaft damage, thereby extending the service life of the entire power system.
Well‑arranged power system with excellent heat dissipation
The engine is positioned above the mower frame, away from soil and weeds, ensuring outstanding cooling conditions. Even during prolonged land‑clearing operations, it resists overheating and power derating, making it ideal for extended working hours in South American wildlands and wastelands.

● Structural advantages of the complete machine manufacturing of the atv flail brush mower

Heavy-duty reinforced frame
The main frame is welded from thick-wall square tubes, giving the entire machine high rigidity. It resists deformation and cracking under towing, rough terrain, and land‑clearing impacts. The tow-hitch connection points are thickened and reinforced to withstand high‑speed towing in off‑road ATV conditions, offering torsional resistance and durability for long‑distance cross-country operations.
Modular assembly design
The engine mount, rotor assembly, ground‑wheel components, and drive guards are all modular. Maintenance and part replacement are straightforward – there is no need to disassemble the whole machine. This simplifies after‑sales service overseas and reduces the repair difficulty for local dealers.
Full‑coverage protective guard structure
The machine features a completely enclosed metal guard with high protective strength. It effectively blocks flying stones and grass clippings from being thrown outward, protecting both the operator and the ATV – ensuring high safety during field operations. The guard is removable for easy internal cleaning.

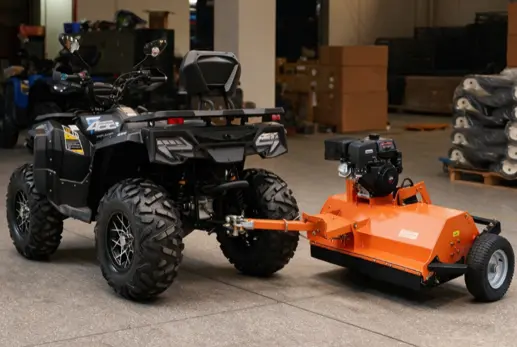

● How to pull mower deck with atv

atv flail mower tow behind – Complete Operating Instructions
I. Hardware Preparation
The ATV must be equipped with a standard trailer hitch receiver at the rear. A pin‑type coupler is preferred over a ball‑type hitch, as it provides greater stability on rough terrain.
The mower's drawbar supports height adjustment and lateral offset, allowing the cutting deck to be shifted outside the wheel track for clearing along fences and road edges.
Essential safety accessories include: a hitch pin, a retaining cotter pin or spring clip, and an emergency engine shut‑off lanyard. It is strongly recommended to add a safety chain as a backup.
Weight matching requirement: For models without brakes, the total mower weight should not exceed twice the ATV's own weight. When working on steep slopes, reduce travel speed further to prevent tail‑wagging or rollover.
II. Hitching Procedure (carry out on level ground, with the ATV switched off and the parking brake engaged)
Park the ATV on level ground, turn off the engine, and apply the parking brake. Reverse slowly to align the ATV hitch with the mower's drawbar.
Connect the hitch coupler, insert the hitch pin, and secure it with the cotter pin to prevent accidental detachment during travel.
Attach the emergency shut-off lanyard: secure one end to the mower's engine kill switch and the other end to the ATV frame. In the event of an unintended unhitching, this will automatically cut the engine.
Adjust the drawbar screw to ensure the mower housing is level – avoid tilting forward or backward, which would cause uneven cutting depth and abnormal blade wear.
Set the desired cutting height using the rear roller. Inspect all bolts, belts, and blades for damage, and manually rotate the rotor to confirm it turns freely without binding.
III. Starting and Operation Procedure
Clear the work area of rocks and metal debris beforehand to prevent high‑speed flail blades from ejecting hard objects and causing injury.
Start the mower's independent engine and allow it to idle for warm‑up, then increase to the rated operating speed.
The ATV should start at a low speed. Normal operating speed is 5–10 km/h; reduce to 2–3 km/h for thick, woody brush. Do not tow at high speed.
When clearing along fences or roadsides, adjust the drawbar offset to extend the cutting deck to the side of the vehicle.
On steep slopes: drive horizontally along the contour lines – never drive straight up or down steep slopes – to significantly reduce the risk of rollover.
Shutdown procedure: First turn off the mower engine, and wait until the rotor has come to a complete stop before moving or disconnecting the equipment.
IV. Common Troubleshooting Adjustments
Uneven cutting height – The drawbar height is out of balance. Re‑level the cutting deck housing. Severe vibration of the whole machine – Missing, deformed, or unbalanced flail blades. Stop immediately and inspect/replace blades. Do not operate with missing blades.
Poor cutting performance or frequent clogging – The ATV forward speed is too fast, or the weeds are too thick/tall. Make a second pass to re‑cut the material.
Stiff turning / jerky steering – The hitch articulation point is locked. Release the pivot joint to restore free movement.
V. Important Safety Prohibitions
Never stand near the mower cutting deck while it is operating. Keep bystanders well away during work.
Do not adjust the cutting height or service the blades while the machine is moving. The engine must be completely shut off and the rotor fully stopped before any maintenance.
Do not brake sharply when going downhill – the tow‑behind equipment may "push" the ATV and swing sideways.
Do not modify the machine to remove the protective guard or disable the emergency shut‑off lanyard.

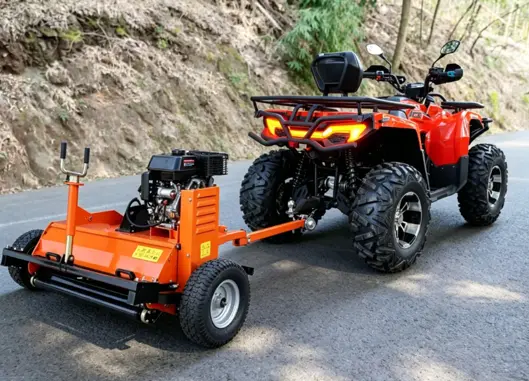

● Can i run a mower with an atv

Flail mowers are available in two power configurations: one that must be driven by the ATV itself, and one that does not require the ATV to provide cutting power.
1. PTO Drive Shaft Type (no engine on the mower; power taken from the ATV)
This type requires the ATV to have a built‑in PTO power take‑off shaft. The mower itself has no engine; the flail rotor is driven by the ATV's engine.
Advantages:
Lighter overall machine weight
Lower cost
Disadvantages:
Cutting consumes ATV horsepower. When mowing thick grass or brush, the ATV may bog down or lose climbing power.
Requires an ATV with PTO capability – standard ATVs cannot be used.
The entire load is placed on the ATV's transmission. Heavy‑duty land‑clearing operations cause significant wear on the ATV.
This type is very uncommon in the South American market, and the vast majority of customers do not choose it.

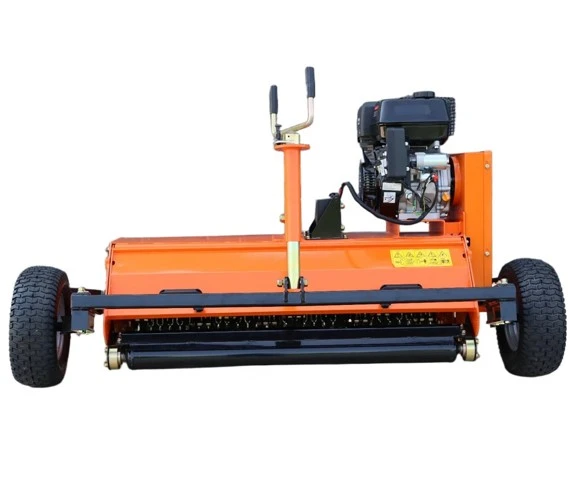

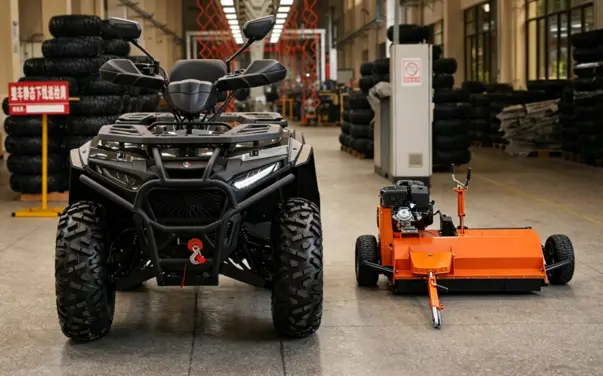

2. Self-Powered Type atv lawn mower with generator
The ATV is used only for towing and pulling. The mower has its own independent gasoline engine that handles cutting – no cutting power is taken from the ATV.
Any standard ATV can be used to tow this mower – no PTO output shaft is required.
The ATV only pulls the machine forward; cutting does not consume any ATV power at all.
Whether it is a 200cc, 300cc, 400cc, or 500cc ATV, as long as its towing capacity is sufficient, it can pull the mower.
Recommended minimum ATV requirements:
Engine displacement: ≥300cc
Towing capacity: ≥120‑150 kg
Suitable for mowers with cutting widths of 1.2‑1.5 meters
Smaller ATVs (200cc and below) can still tow the mower, but may struggle on uphill slopes or muddy terrain.

● Atv flail brush mower max diameter

Branches of 3–5 cm in diameter are for occasional emergency use only and should not be treated as a normal operating parameter. When handling such material, you must reduce forward speed – 2–3 km/h is recommended – and decrease the single‑pass cutting width. Even if hard, old trunks or dry branches are broken off, they will significantly accelerate wear on the flail blades, pivot pins, clutch, and bearings.
Branches larger than 5 cm in diameter are not suitable for this machine and should be processed with a wood chipper/shredder instead.

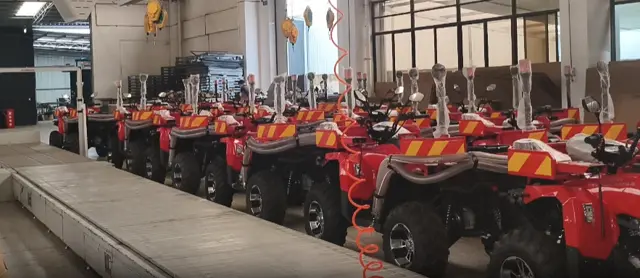

● Atv flail mower manufacturers

Chongqing Pengpai Power Machinery Co., Ltd., are a professional manufacturer of atv and flail mower, specializing in the R&D and production of tow behind flail mower atv and supporting land‑clearing implements for ATVs. Our advantages include:
1.Complete in‑house production line – integrated sheet metal forming, welding, machining, and powder coating. Core components such as frames and rotor shafts are manufactured internally. Every machine undergoes full functional testing before leaving the factory.
2.Product optimization for target markets – our designs are specifically improved and adapted for the high-temperature, rocky, and brush‑covered wasteland conditions typical of Latin America.
3.Customization services – OEM/ODM branding is supported. We can tailor cutting width, engine horsepower, and hitch configurations to your requirements. A complete documentation package is provided, including English/Spanish manuals and exploded-view parts drawings.
4.Reliable supply – we maintain ample stock of wear parts such as blades, belts, and clutches, and accessory kits can be shipped together with container orders. With factory-direct supply and stable delivery times, we offer complete land‑clearing equipment solutions for global distributors.
