atv with snow plow and mower

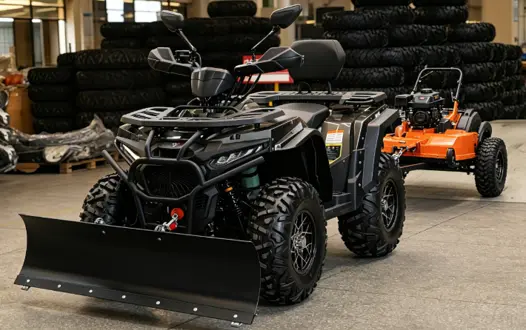

atv with snow plow and mower is a multifunctional agricultural implement built on a 4WD off-road ATV platform, featuring a front-mounted snow plow and a rear-mounted flail mower atv that can be quickly interchanged. The vehicle utilizes factory-pre-reserved mounting interfaces, allowing the two attachments to be swapped in just minutes without any chassis modification, truly achieving a "one machine, multiple uses" solution.

● atv flail mower 120 cm width product info

● Atv flail mower reviews

Colombia, Mountain Pasture
atv 120 flail mower with estartis a perfect match for my 20 HP ATV. Compared to the 150 cm model, it is lighter in weight and more maneuverable between fruit tree rows and on gravelly slopes. The flail blades yield upon hitting rocks, making them less prone to damage. It thoroughly shreds tall grass, thorns, and small shrubs, with the shredded material returned directly to the field as organic fertilizer. The standalone engine is a major advantage, as it does not require hydraulic output from the ATV. The ball-type hitch allows for quick and easy attachment. Working efficiency is approximately 2,200 m²/hour, significantly reducing manual labor. Recommended for mid-sized farms in South America — be sure to operate at low speed.

Mexico, Orchard
mower to pull with atvis ideally suited for inter-row mowing in orchards, as well as fence-line and slope cleanup. The 120 cm width does not hit tree trunks. It is safer than rotary mowers and does not throw gravel or debris. I am very satisfied with the working performance. It is not suitable for ornamental lawns, but it works excellently for agricultural field operations.

● how to pull mower deck with atv

atv with mower deck and generator Complete Operation — Standard Connection Steps
Please read the following carefully before first use to ensure safe operation.
I. Hardware Preparation
ATV Rear End:Must have a 1-1/4 inch receiver hitch with a 2-inch ball mount, or a clevis pin‑type U‑hitch.
Mower Drawbar:Rotating articulating design to accommodate uneven terrain; supports center‑offset installation.
Safety Accessories:Hitch pin + cotter pin (anti‑detachment), safety emergency stop lanyard (mandatory for engine‑driven models).
PTO Models (Additional):Universal drive shaft, safety shield; verify that the ATV rear PTO output speed matches the mower deck.
Weight Reference:Total weight of the mower (without brakes) must not exceed 2× the ATV's own weight; reduce load further on slopes to prevent rollover and fishtailing.
II. Connection Steps (Perform on level ground, ATV parking brake engaged and engine off)

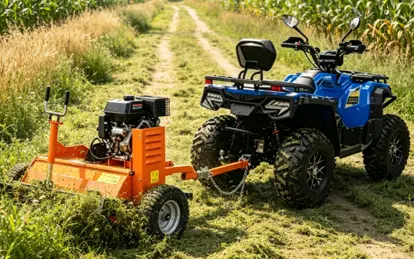

Option A: Standalone‑Engine Mower Deck (Most Common)
Reverse and Align:Reverse thecuatrimotos 4x4 atvto align with the mower drawbar, engage the parking brake, and turn off the engine.
Hitch and Lock:Place the mower coupler over the ATV ball mount and secure the latch. For pin‑type hitches, insert the pin and immediately secure it with the cotter pin.
Level the Drawbar:Adjust the drawbar screw so that the drawbar is parallel to the ground and the mower deck is level overall. Tighten the locking nut after adjustment.
Offset Installation (Optional):If offset mowing is required, loosen the drawbar locking bolts and shift the deck away from the ATV exhaust pipe side to prevent grass clippings from being sucked into the exhaust and causing a fire hazard. Then secure the positioning holes with the nuts.
Attach the Safety Lanyard:Secure one end of the emergency stop lanyard to the ATV frame and the other end to the mower engine's kill switch — so that in the event of accidental uncoupling, the engine will automatically shut down.
Set Mowing Height:Adjust the deck casters to set the desired grass‑standing height. When transporting, be sure to raise the deck to the highest position.

2.PTO‑Driven Mower Deck (ATV‑Powered)
Complete mechanical hitching steps 1–4 as described above, and level the mower deck.
Inspect the driveshaft shield to ensure it is intact and free of cracks. The telescopic universal joint must be of adequate length to accommodate turning, and the driveshaft must not be overstretched or strained at maximum steering angles.
Pull back the sliding sleeve on the driveshaft, align the splines with the ATV‑PTO output shaft, and push it in until the sleeve automatically locks into place. Pull it forward and backward to confirm that it does not come loose (John Deere).
Double‑check that the driveshaft does not come into contact with the frame, tires, or any hoses/lines throughout its range of motion.
Engage the PTO at low ATV speed. Never engage it abruptly at high RPM while stationary, as this may damage gears or belts.
III. Operating Guidelines
Starting:Drive off at low speed. Recommended working speed is 3–5 MPH (5–8 km/h). In dense, heavy weeds, reduce speed to 2–3 MPH. Excessive speed may cause missed cutting, blade damage, and belt overheating.
Slopes:Do not traverse slopes sideways. Travel straight up and down the slope. On steep slopes, do not operate with a towed attachment, as this greatly increases the risk of rollover. Turning:Make wide, slow turns — avoid sharp steering. On PTO‑driven models, sharp turns can twist and damage the driveshaft.
Transporting:Raise the deck to its highest position. For standalone‑engine models, you may turn off the engine during transport. For PTO models, be sure to disengage the PTO output.
Shutdown & Maintenance:Do not clean the deck or blades until they have come to a complete stop.
Do not touch belts or the exhaust pipe immediately after operation while they are still hot.
IV. Common Fault Troubleshooting

Phenomenon	Cause	Solution
Uneven cutting height (one‑side high, one‑side low)	Cutting deck tilted	Adjust the leveling screw of the drawbar; ensure the left and right gauge wheels are at the same height
Severe vibration	Unbalanced PTO shaft, deformed blades, loose drawbar	Inspect blades and PTO shaft; tighten all hinged bolts
Frequent belt burning	Abrupt PTO engagement, excessive operating speed, deck scraping against ground	Reduce travel speed, engage power smoothly, maintain proper ground clearance
Risk of hitch decoupling	Unlocked ball‑joint clip, missing split pin	Check safety pins and clips before each operation

V. Safety Red Lines
Neverallow anyone to stand between the ATV and the mower deck.
Clear the mowing area of stones, wire, and stumps to prevent blade ejection of foreign objects.
Before each use: inspect all pins, retaining clips, and bolts.Do notoperate if the PTO shield is missing.
Do nottow the mower deck at high speed on public roads.
