Tea bag pouch packing machine

Tea pouch packing machine price: USD 6200-7000

Pouch packing machine description

This inner and outer bag integrated tea bag pouch packing machine is a new type of heat-sealed, multi-functional automatic tea pouch packing machine. It is one of the good sale small automatic pouch packing machine. The main feature of automatic tea pouch packing machine is that the inner and outer bags are formed at one time, which avoids direct contact between human hands and materials and improves efficiency.  The inner bag is made of filter cotton paper, which can be automatically threaded and labeled, and the outer bag is made of composite paper.

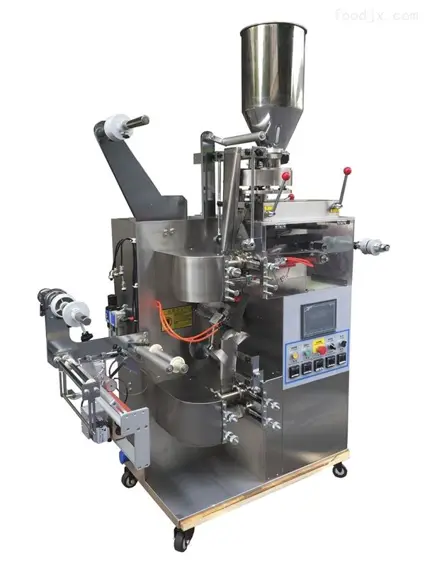

tea bag pouch packing machine

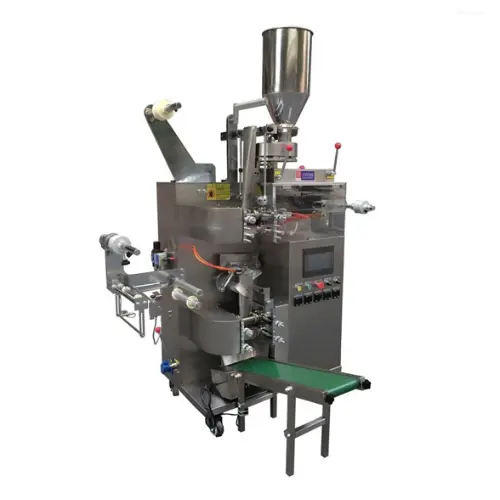

green tea pouch packing machine

Tea pouch packing machine for sale is suitable for packaging of small particles such as tea, herbal tea, and health care tea. It can automatically complete the bag making, measuring, filling, sealing, cutting, counting and other processes. This tea packing machine has the functions of moisture-proof, anti-odor volatilization, fresh-keeping and so on.

Tea bag pouch packing machine replaces manual packaging, realizes packaging automation for large enterprises, small and medium-sized enterprises, improves production efficiency in all walks of life, and greatly reduces costs.

tea bag pouch packing machine

Product parameters

Product nameTea bag pouch packing machine (inner and outer bag integrated)
FunctionSealing, metering, packaging assistance, coding, inkjet coding, cutting.
Packaging materialsfilm
Type of packagingbag
Automation gradefully automatic
Voltage220V/50Hz
Power3.7kw
Packing speed35-60 bags/min
Packaging film width240mm
Packing capacity3-15 grams
Inner bag sizeWidth 50-80mm Length 50-100mm
Outer bag sizeWidth 70-110mm length 80-130mm
Cotton line length155mm
Label sizeWidth 40-55mm length 20-24mm
Weight500kg
Dimensions1200*900*1900mm
Kindly noteDue to product upgrades, the specific parameters are subject to the actual product.

Tea packing machine features

•Fully automated packaging, high efficiency;

Can automatically complete bag making, measuring, filling, sealing, cutting, counting and other processes.

•The pump body is all made of stainless steel;.

•Adopt advanced computer controller, with non-leakage back suction technology;

•Both labeling and outer bag can adopt photoelectric positioning;.

•Packaging capacity, inner bag, outer bag, label, etc. can be adjusted arbitrarily within the rated range;

The size of the inner and outer bags can be adjusted according to the different needs of users, so as to achieve the ideal packaging effect, improve the product appearance and increase the value.

•Wide range of packaging;

The tea pouch packing machine can also be applied to the automatic packaging of seeds, medicines, health care products and other materials.

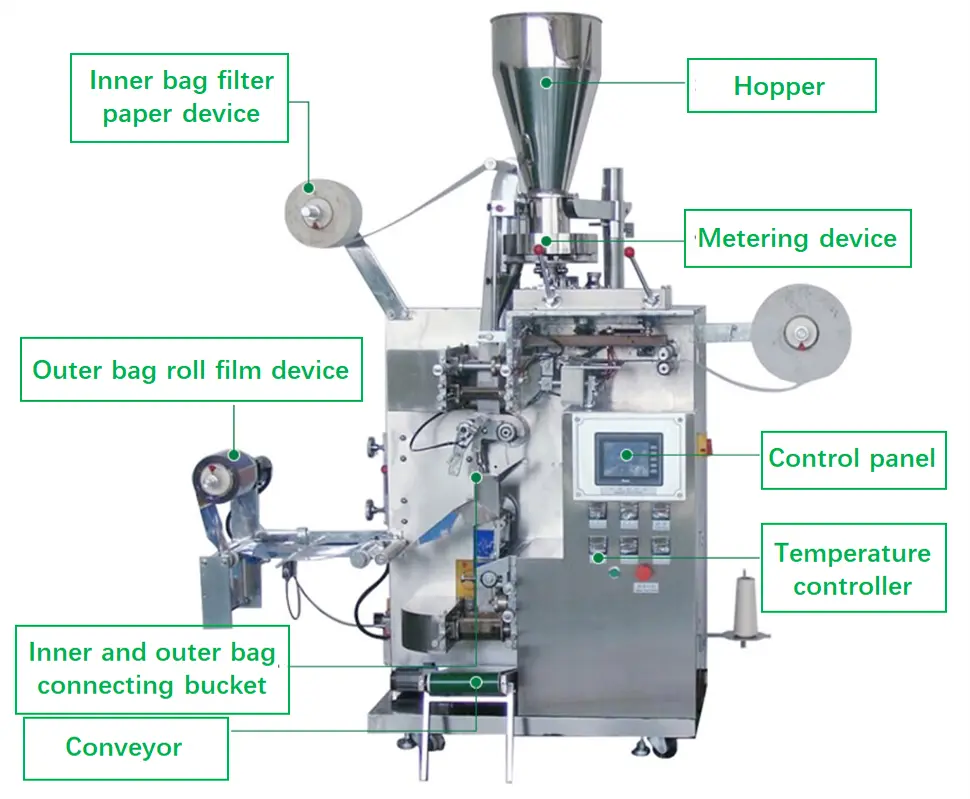

Pouch packing machine design

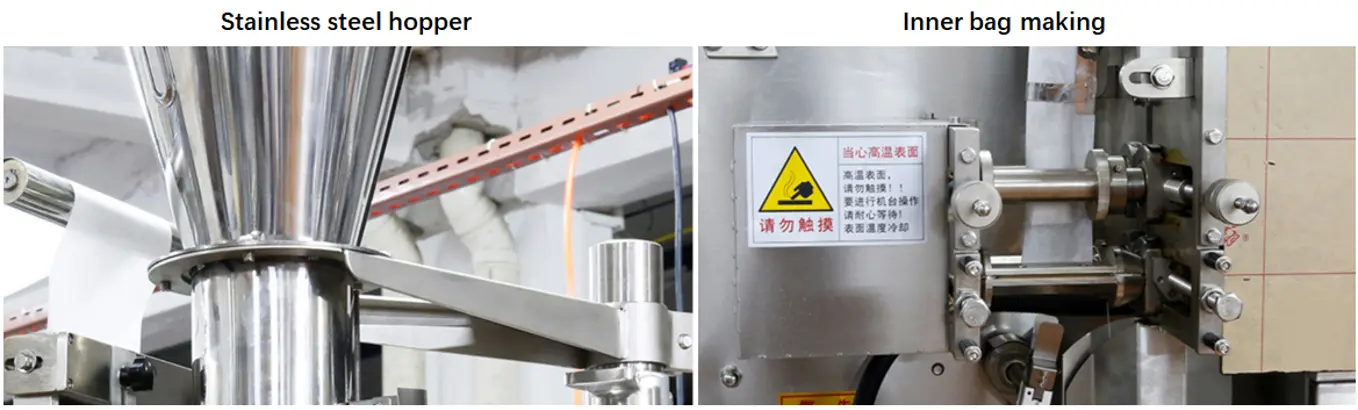

•Stainless steel hopper

Hopper of tea bag pouch packing machine

•Inner bag making

Inner bag making of tea bag pouch packing machine

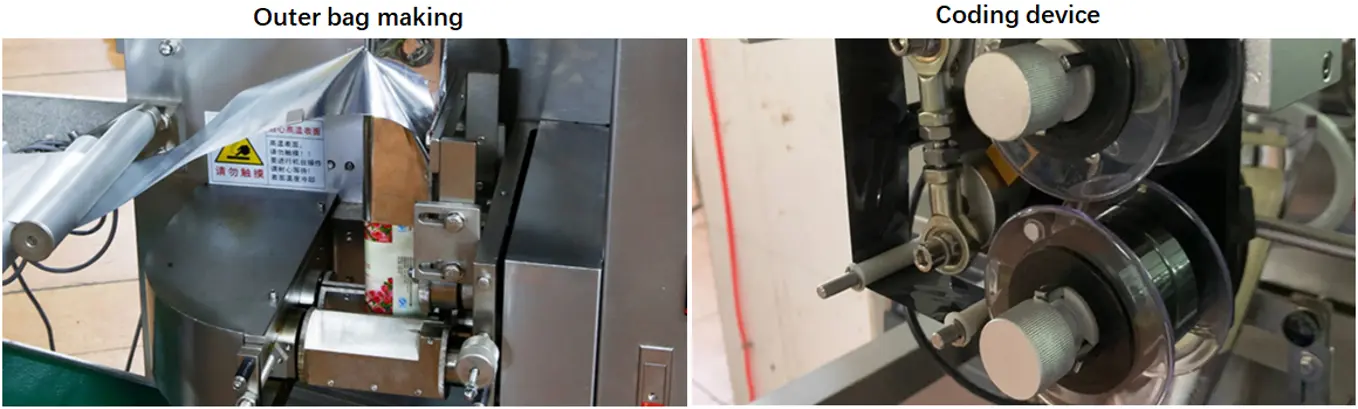

•Outer bag making

Outer bag making of tea bag pouch packing machine

•Coding device

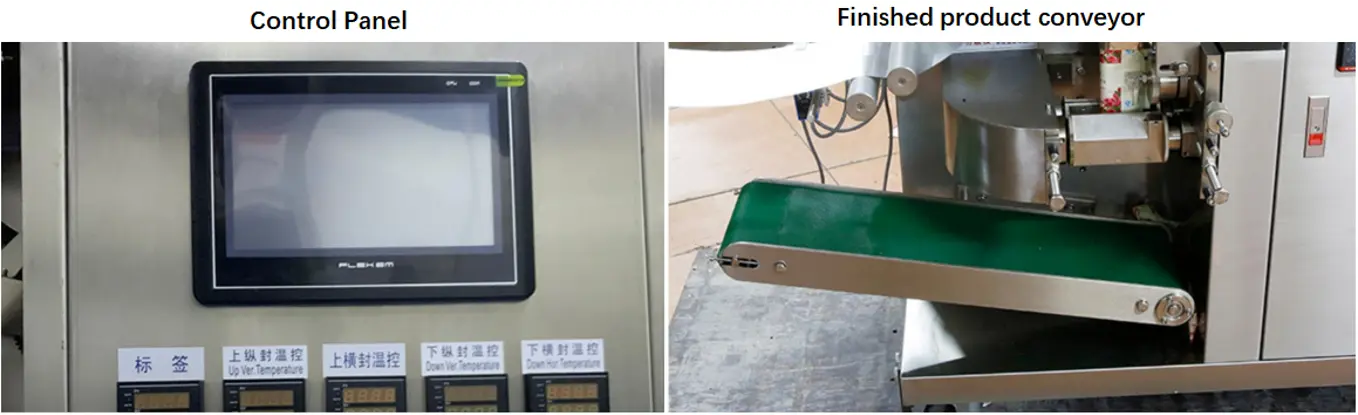

•Control panel

Control panel of tea pouch packing machine for sale

•Finished product conveyor

Conveyor of tea pouch packing machine for sale

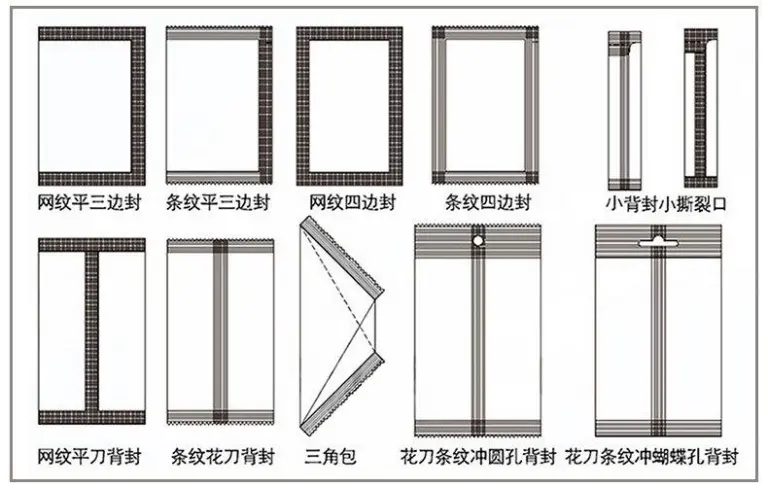

Customizable bag styles

Customizable bag styles

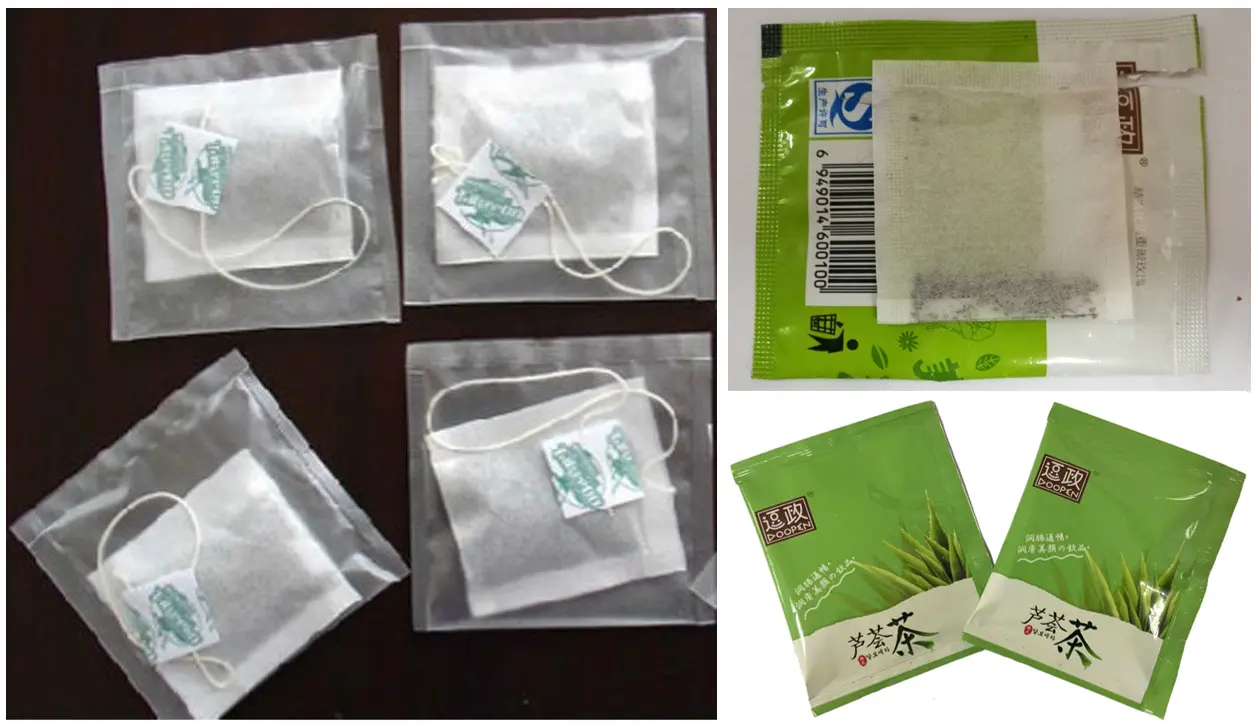

Finished product display

Finished produc -display
Finished product display

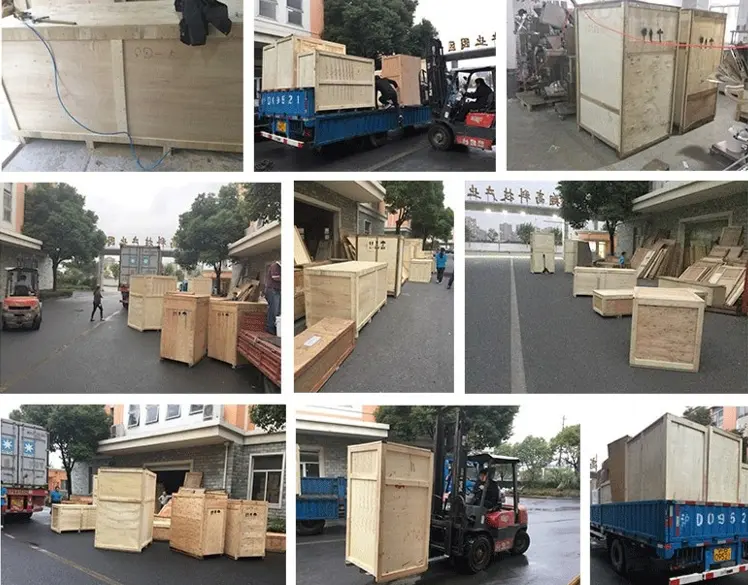

Transport Packaging

Transport Packaging

Automatic pouch packing machine manufacturers

We are a professional pouch packing machine manufacturer with many years of experience in packing machine production and export, mainly producing fully automatic pouch packing machine, granule pouch packing machine, pouch packing machine for liquid, powder packing machines, automatic premade pouch packaging machine etc. Our automatic pouch packing machine are mainly sold to India, Pakistan, Sri Lanka, Malaysia, Philippines, Indonesia and other Asian countries as well as Kenya and other African countries. We also have advantages in transportation, so we can provide users with local pouch packing machine cost, for example, automatic pouch packing machine price in India such as tea pouch packing machine price in India and so on.

Over the years, we have been widely praised by users for our stable quality and excellent service. In the days to come, we will further deepen product quality, continuously optimize product performance, develop more product functions, and provide more and better products and services for the market and users.

Welcome friends from all walks of life to contact us for more pouch packing machine products and information.
