Pouch packing machine for liquid

Pouch packing machine description

The pouch packing machine for liquid is mainly suitable for the automatic filling and packaging requirements of various liquids/sauces, such as tomato sauce, peanut butter, jam, chili sauce, bean paste, detergent, rice wine, soy sauce, rice vinegar, fruit juice, etc.

This automatic liquid pouch packing machine adopts color touch screen and reliable dual-axis high-precision output PLC control, and automatically completes all the work of measuring, feeding, filling and bag making, and date printing during the packaging process.

Pouch packing machine for liquid
liquid pouch packing machine for sale

Product parameters

This liquid pouch packing machine for sale has three models: YS-420, YS-520, and YS-720, which can pack products of different capacities and meet the different needs of users. we marked the main difference in red.

YS-420:

ModelYS-420
Packing speed5-60 bags/min
Film width420mm
Measuring rangeMAX.: 1500ml
Bag size(L)80-300mm (W)60-200mm
Film thickness0.04-0.08mm
Film pulling methodDouble belt pull film
Barometric pressure0.65mpa
Air consumption0.4m3/min
Power type2.2KW 220V 50HZ
Dimensions(L)1450mm (W)1020mm (H)1350mm
Total Weight450kg

YS-520:

ModelYS-520
Packing speed5-50 bags/min
Film width520mm
Measuring rangeMAX.: 3000ml
Bag size(L)80-400mm (W)80-250mm
Film thickness0.04-0.08mm
Film pulling methodDouble belt pull film
Barometric pressure0.65mpa
Air consumption0.4m3/min
Power type4KW 220V 50HZ
Dimensions(L)1450mm (W)1120mm (H)1650mm
Total Weight600kg

YS-720:

ModelYS-720
Packing speed5-40 bags/min
Film width720mm
Measuring rangeMAX.: 7500ml
Bag size(L)100-500mm (W)200-250mm
Film thickness0.04-0.08mm
Film pulling methodDouble belt pull film
Barometric pressure0.65mpa
Air consumption0.65m3/min
Power type6KW 220V 50HZ
Dimensions(L)1780mm (W)1350mm (H)2040mm
Total Weight900kg

Product advantages

•Low investment, high return, fast speed and high efficiency.

•Imported PLC full computer control system, man-machine interface, super large display touch screen, easy to operate.

•The temperature of horizontal and vertical sealing is independently controlled, which can be well applied to various protective materials such as composite films and PE films.

•Diversified packaging styles, such as back sealing, gusseting, bagging, punching, etc.

•The working environment is quiet and the noise is low.

Product advantages

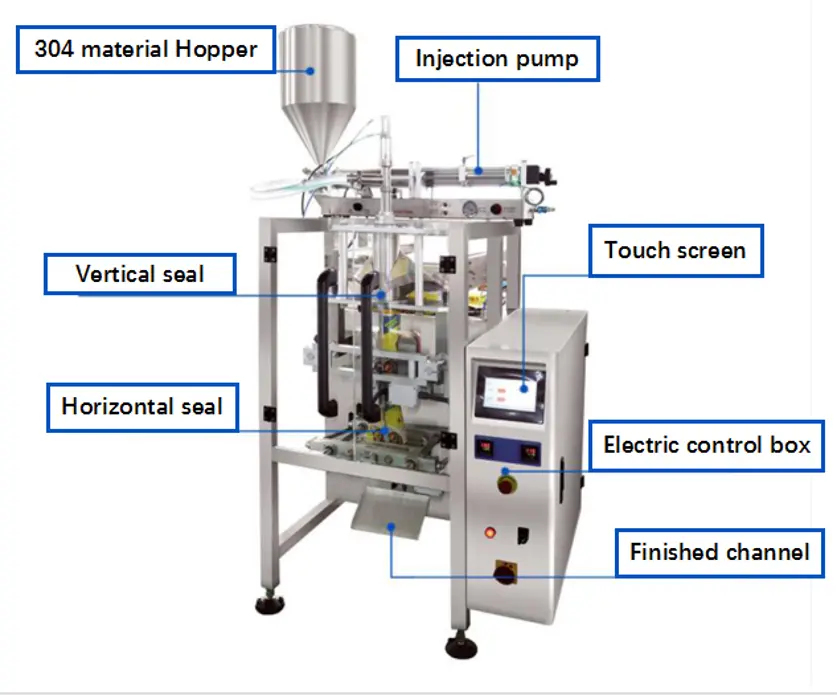

Product structure

Product details

small pouch packing machine gag former
Bag former
The metal panels on both sides are folded and rolled into a bag, which is strong and beautiful.
small pouch packing machine vertical seal
Vertical seal
Independent PID temperature control, vertical sealing is suitable for multi-style bags, more stable packaging molding, and guaranteed airtightness
liquid pouch packing machine horizontal seal
Horizontal seal
Constant temperature heat sealing cutter, sealing the front and rear ends of the package, optional gusset
Touch screen
Touch screen
It adopts touch screen control in both Chinese and English, controls the parameter adjustment through the intelligent system, and runs by piece counting. Parameter adjustment is more convenient.
Film release device
Film release device
The servo motor is used to pull the film, so that the film is more stable and does not run away. The external film release mechanism is used to make the installation of the film more convenient and safer.
Coding machine
Coding machine
Using imported coding machine,
track and print the production date, batch number, etc., the printing speed is fast, the printing area is wide, the printing arrangement is flexible, and the one-key operation is faster and more stable.

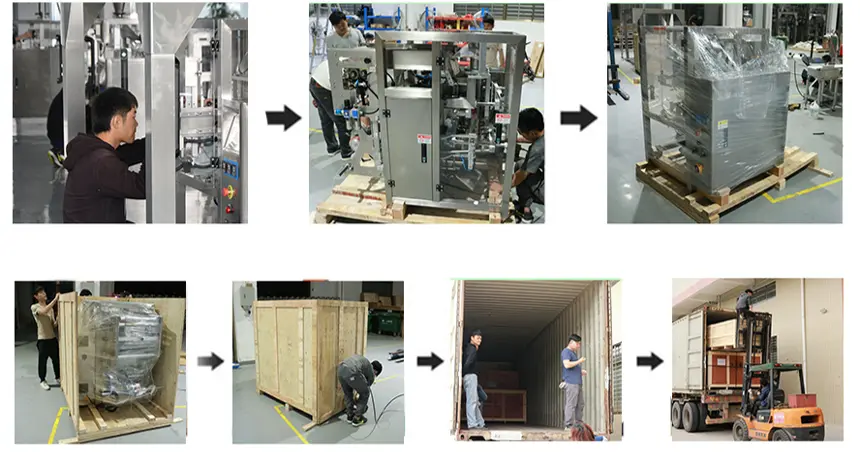

Packing and shipping

Our pouch packing machine for liquid are widely sold to many countries such as Pakistan, India etc. In order to ensure that users receive the perfect machine, we use full wooden packaging to ensure that the machine will not be damaged during transportation.

Packing automatic liquid pouch packing machine

Pouch packing machine manufacturer

We are a pouch packing machine manufacturer from China, mainly producing different types of pouch packing machine, for example, pouch packing machine automatic, vertical pouch packing machine, bag feeding packaging machines, automatic premade pouch packaging machine, food filling machines and other equipment (such as granule packing machine, dry powder packing machine, liquid pouch packing machine, ketchup pouch packing machine, pillow packaging machine, etc.), to meet the different packaging requirements of customers for different materials.

Our pouch packing machine are exported to Southeast Asia, Europe and the United States and other countries and regions. We send our packing machines to local pouch packing machine suppliers in India for long term (such as send to pouch packing machine manufacturer in Delhi, Kolkata, Coimbatore, Kanpur, Vadodara, Pune. liquid pouch packing machine manufacturers in Delhi, pouch packing machine manufacturer in Surat etc., Pakistan, etc. Our packing machines are favored and praised by consumers at home and abroad.

In the future, we will further optimize the development model of “stable quality, affordable price, service-oriented”, constantly improve ourselves, and provide more and better products and services to the packaging machinery market. Welcome to contact us for more cooperation.

Stand up pouch packing machine India

In November 2022, India held the India Food Packaging and Packaging World Exhibition at the Mumbai Convention and Exhibition Center, which mainly displayed food processing machinery, packaging machinery and packaging materials. As a platform for communication, the people participating in the exhibition come from all over the world, which is highly international, which also shows that food processing machinery and packaging machinery are becoming more and more popular and the market demand is  fast increasing.

In recent years, India has actively developed the food processing industry, and the demand for food machinery and packing machine has doubled, with huge potential, which makes India the world’s main demand market for food processing machinery and packing machine. In terms of packing machine, there is a huge demand for processing and packing machinery for food and beverage, pharmaceutical and cosmetics, non-food consumer goods and industrial products, pastry, confectionery and baked goods.

You can see pouch packing machine for sale in many cities in India, such as pouch packing machine in Delhi, Kolkata, Kanpur, Ludhiana, Nagpur, etc.  Most of them are imported from China, and they are pouch packing machine China, so if you have a demand for packing machines, you can also buy them directly from China. As long as you choose a suitable packaging machine manufacturer, you can quickly enter the packaging machine industry. You are welcome to contact us for information about packaging machines, such as liquid pouch packing machine price in India, liquid pouch packing machine price in Pakistan etc.
