LIQUID POUCH PACKING MACHINE

Pouch packing machine description

Liquid pouch packing machine

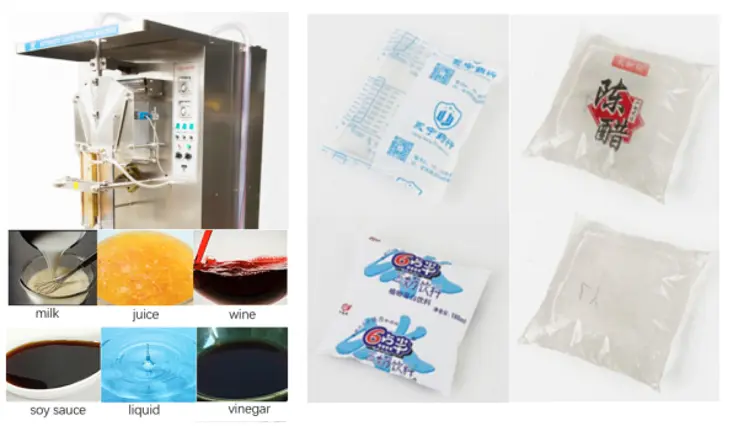

This automatic liquid pouch packing machine is mainly used for packing various low-viscosity liquid products such as soy sauce, edible vinegar, milk, cooking wine, liquor, sterilized beverage, fruit juice, milk, yogurt, soybean milk, etc. Its process flow parts are all made of stainless steel, quantitatively filled by self-priming pumps, and the processes of forming, bag making, quantitative filling, ink printing, sealing and cutting are all carried out automatically. Direct heat sealing and cutting, bag size, packaging weight, sealing and cutting temperature adjustment is convenient and reliable, This liquid pouch packing machine for sale is working fast, it is economical and practical.

pouch packing machine for liquid
Liquid pouch packing machine

•Automatic quantification

Mechanical button operation, simple and clear, durable;

•Automatic bag making

Quickly complete bag making, fast feeding speed and high work efficiency;

•Automatic packaging

After cutting, use the back sealing method to seal tightly;

•Automatic bag cutting

Automatically complete bag cutting and packaging.

water liquid pouch packing machine

Product parameters

Product nameAutomatic liquid pouch packing machine
Model numberYS-1000
UsageFilling, packaging, sealing, cutting
Applicationlow-viscosity pure liquid (without particles)
Packaging Type Pouch
Automation Grade Automatic
Filling range50-500 ml
Packing speed33-37 packs/min (depending on the product)
Bag length50-150 mm
Bag width40-150 mm
Sealed formback seal
Material width100-320 mm
Film MaterialOPP/CPP,OPP/PE,CPP/PE
Power supply220V/AC 50Hz
Power1.6 kw
Machine material304 Stainless Steel

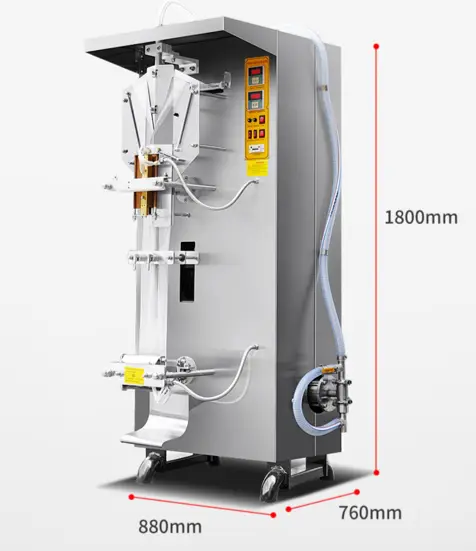

Machine size880×760×1800 mm
Machine weight275 kg
Transport packageCarton and Wooden Carton
automatic liquid pouch packing machine

Product features

This liquid pouch filling packing machine is easy to operate, and can automatically complete bag making, measurement, filling, sealing, cutting, counting, and batch number printing. It also has the following features:

•Fast suction and high efficiency;

•Equipped with a check valve device, liquid won’t return after shutdown;

•High-power pure copper motor, durable, stable pulling bag, easy to drive machinery;

•304 thick steel, thick and stable body, corrosion resistance, high temperature resistance, long service life

Product features

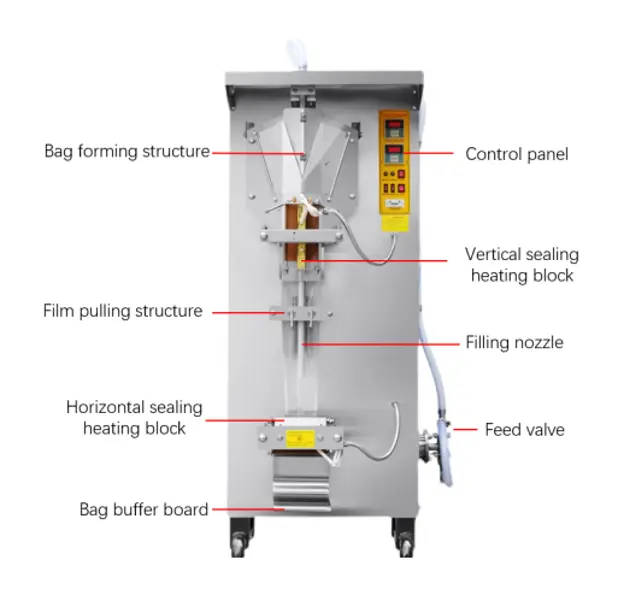

Product structure

liquid pouch packing machine for sale

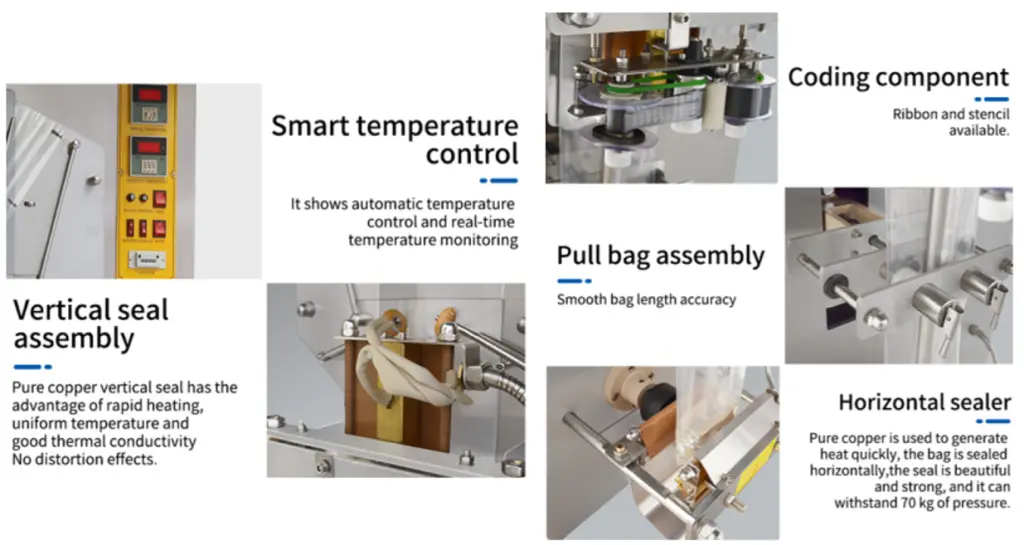

Product details

Product details

Packing sample

Packing sample

Packing sample

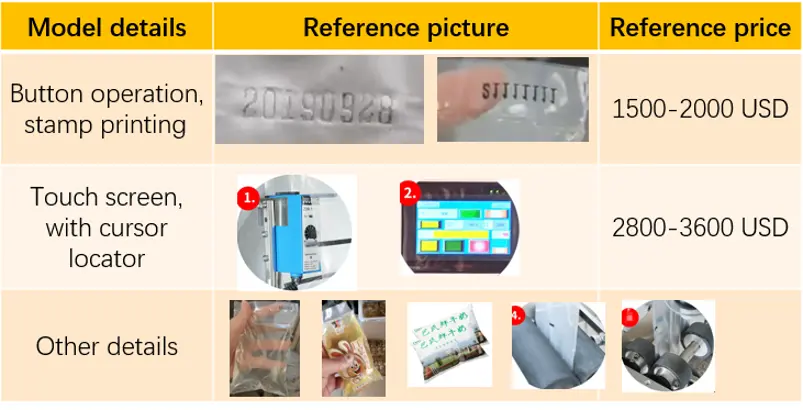

The price of liquid pouch packing machine ranges from around 1500 USD to 5000 USD. This is because there are many optional configurations for the pouch packing machine for liquid. Users can choose the liquid pouch packing machine model and configuration according to their packaging needs, and then obtain a reliable liquid pouch packing machine price and complete pouch packing machine cost.

Automatic liquid pouch packing machine price

We are a liquid pouch packing machine manufacturer specializing in providing a variety of liquid pouch packing machine, fully automatic pouch packing machine, small pouch packing machine and other packaging machinery equipment to the majority of users. Welcome to click WHATSAPP to contact us for more models and information consultation.

Precautions for cleaning automatic liquid pouch packing machine

1. Use the power supply and air source that meet the requirements of the automatic liquid pouch packing machine;

2. There are electrical control components inside the liquid pouch filling packing machine. Do not wash the body directly with water, as there will be a risk of electric shock;

3. Before disassembling and washing the liquid pouch packing machine for sale, the air source and power supply must be turned off first;

4. After turning off the power switch, some circuits in the electrical control of the liquid pouch packing machine for sale still have voltage;

5. Equip the automatic liquid pouch packing machine with a power socket with a ground wire so that the machine must be well grounded to avoid electric shock.

What should be paid attention to when using a liquid pouch packing machine?

1. Before turning on the liquid pouch packing machine each time, check to see if there is any abnormality around the machine.

2. During the operation of the machine, it is strictly forbidden for the body, hands and head to approach or touch the moving parts.

3. When the machine is running, it is strictly forbidden to put hands and tools into the sealing knife seat.

4. When the machine is working normally, please do not switch the operation button frequently, and change the parameter setting value frequently at will.

5. Do not run the automatic liquid pouch packing machine at high speed for a long time.

6. It is forbidden for two people to operate various switch buttons and mechanisms of the machine at the same time;

7. When checking and maintaining the electrical control circuit, it is strictly forbidden to work with electricity, and the power must be cut off! It needs to be completed by electrical professionals. The water liquid pouch packing machine is automatically locked by the program and cannot be modified without authorization.

8. When multiple people are debugging and maintaining the machine at the same time, they should pay attention to communicating with each other and signaling to prevent accidents caused by lack of coordination.
